Water Pump 0.75 l pressure accumulator tank, 1/2" - for motorhome and boat water systems
- 0.75 l accumulator tank with internal bladder: smoother flow, less pump cycling and a quieter system. Pre-charge 0.7 bar, max. 8.6 bar, 1/2" NPT ports. 2 hose barbs included.
Water Pump 0.75 l accumulator tank is installed after a water pump with a pressure switch. The internal bladder with an air cushion stores water under pressure, smooths the flow and reduces frequent pump cycling. For motorhomes, caravans, boats and cabins.
What it does
- smoother water flow
- less on/off cycling of the pump
- quieter system and longer pump life
- more stable hot water temperature with instant water heaters
- fits new and existing systems
How it works
- factory pre-charged air cushion behind the bladder
- while the pump runs, water enters the tank; at maximum pressure the pump stops
- when a tap opens, the air pushes water into the system, and the pump only restarts when pressure drops to the minimum
Installation
- disconnect the pump power and open a tap to relieve pressure

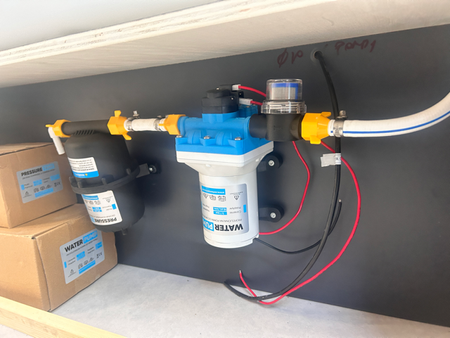

- the tank goes anywhere in the discharge line after the pump, in any position
- secure the hoses on the barbs with hose clamps
- restore water and power and bleed the air by running water through to the last outlet

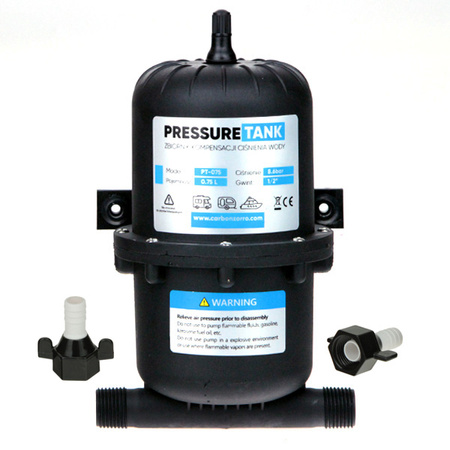

- rubber feet, 2 hose barbs included

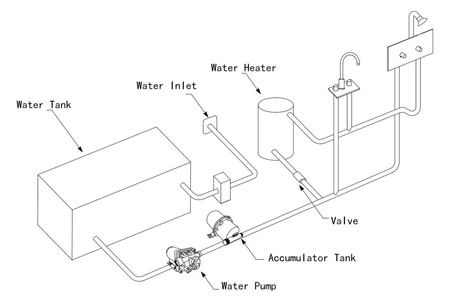

System diagram
Water flows from the water tank to the pump, and after the pump through the accumulator tank to the water heater and taps.
Pre-charge pressure
- factory set to 0.7 bar
- before use, set the air pressure 0.2 bar below the pump cut-in pressure
- adjust with an ordinary tyre pump and gauge at the car-type valve on the tank end, with the pump off and a tap open
- check the pressure regularly

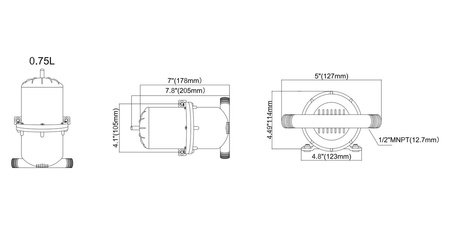

Dimensions
Length 205 mm, height 114 mm, width across the ports 127 mm, base width 123 mm.
Safety
- do not exceed 8.6 bar
- do not use with petrol or liquids with a flash point below 37°C
- before removal, always disconnect the pump power and open a tap to relieve pressure
Photos and drawings
Other Water Pump products
- 4-chamber pump WP7LPM, 7 l/min, 1.38 bar
- 4-chamber pump WP10LPM, 10.6 l/min, 3.1 bar
- small 2-chamber pump SWP38LPM, 3.8 l/min, 2.4 bar
- 2-chamber pump SWP31LPM, 3.1 l/min, 4.8 bar
- 1/2" NPT water strainer - fitted before the pump
Technical data
| Parameter | Value |
|---|---|
| Capacity | 0.75 l |
| Pre-charge | 0.7 bar (10 psi) |
| Max. operating pressure | 8.6 bar (125 psi) |
| Air valve | car tyre type |
| Ports | 1/2" NPT male |
| Weight | 360 g |
| Dimensions | 205 x 114 mm |
| Installation | discharge line after the pump, any position |
| Included | 2 hose barbs |
| Certificates | CE, RoHS |
Questions and answers
Where is the tank installed?
In the discharge line after the pump, anywhere and in any position.
What pressure should I set?
0.2 bar below the pump cut-in pressure. The factory pre-charge is 0.7 bar.
How do I check the pressure?
With an ordinary tyre gauge on the car-type valve, with the pump off and a tap open.
Are hose barbs included?
Yes, 2 hose barbs are included.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warsaw, Poland.
