Eberspächer Breezonic Performance HP roof air conditioner - 2500 W cooling, 2400 W heating, R32, 230 V, 40 x 40 cm cut-out
- Eberspächer Breezonic Performance HP: roof air conditioner with heat pump for motorhomes and caravans. Cooling 2500 W, heating 2400 W, inverter compressor, R32, 230 V, cut-out up to 40 x 40 cm. Air distributor sold separately.

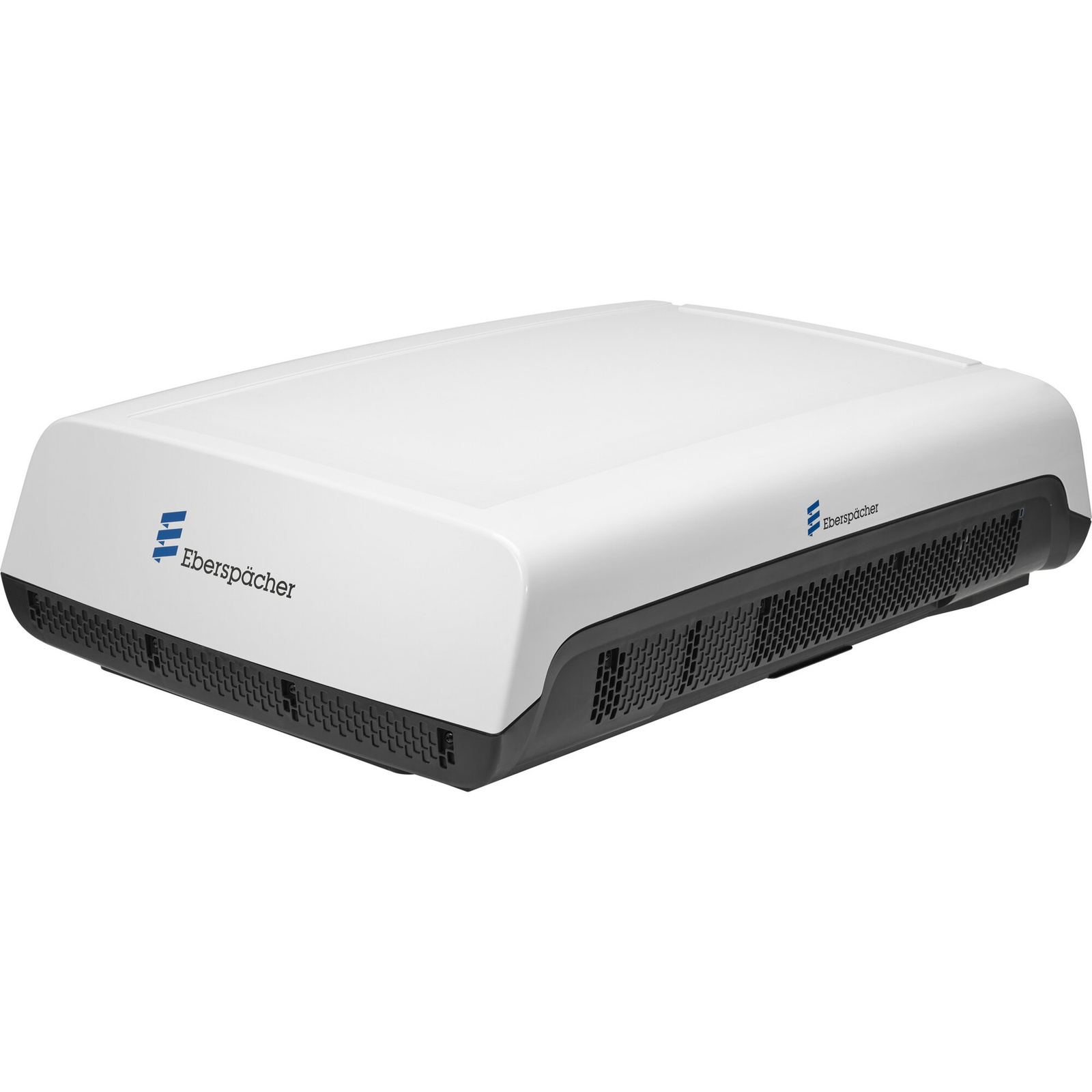

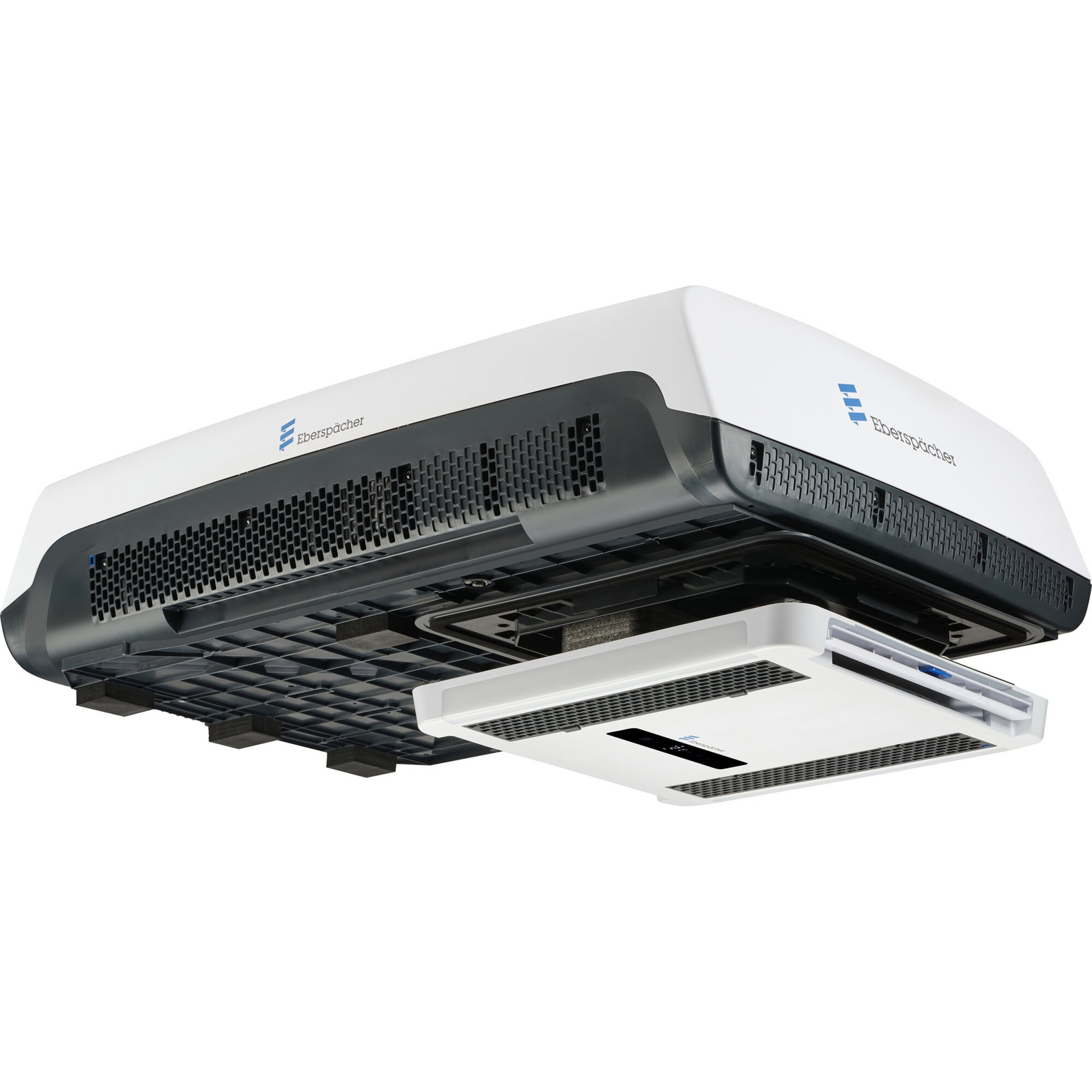

The Eberspächer Breezonic Performance HP is a roof-mounted air conditioner with heat pump for motorhomes, vans and caravans. It cools with 2500 W and heats with 2400 W (ISO 5151). The variable-speed inverter compressor with soft start keeps noise and power draw low. The roof unit needs the Breezonic air distributor with touch panel and dimmable LED lighting, sold separately.
Performance
- cooling 2500 W, heating 2400 W (ISO 5151)
- current: 4.1 A cooling, 4.2 A heating
- max. air flow 542 m³/h
- inverter compressor with soft start, R32 refrigerant (0.385 kg)
- operating temperature -7 to 52°C
Control and modes

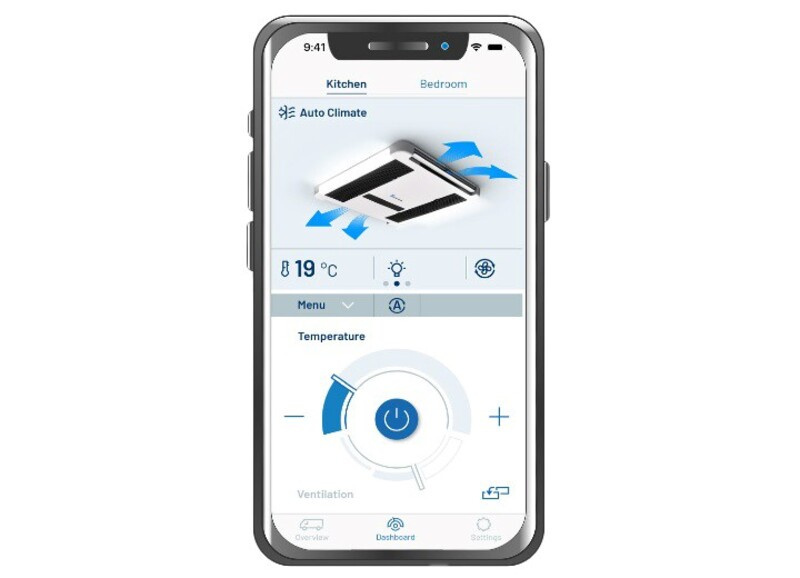

- touch panel on the air distributor, app (Bluetooth), optional remote control or EasyStart Touch
- interfaces CI-Bus, RV-C, Bluetooth, infrared
- modes: heating, cooling, auto, timer, turbo, eco, dehumidifying, recirculation; night mode; 3 fan speeds
Matching products
- Breezonic Performance / Performance Plus air distributor (required)
- remote control for Breezonic Performance / Performance Plus
- stronger version: Breezonic Performance Plus HP 230 V 3.5 kW
- alternative: Truma Aventa comfort 2nd generation - 2500 W cooling, 2000 W heating
- alternative: Truma Aventa compact plus 2nd generation - 2200 W cooling, lighter
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Eberspächer |
| Model | Breezonic Performance HP 230 V 2.5 kW |
| Manufacturer part no. | 29.0218.41.0001 |
| EAN | 4056637347335 |
| Cooling power (ISO 5151) | 2500 W |
| Heating power (ISO 5151) | 2400 W |
| Current | 4.1 A cooling / 4.2 A heating |
| Voltage | 230 V AC, 50 Hz |
| Max. air flow | 542 m³/h |
| Refrigerant | R32, 0.385 kg |
| Operating temperature | -7 to 52°C |

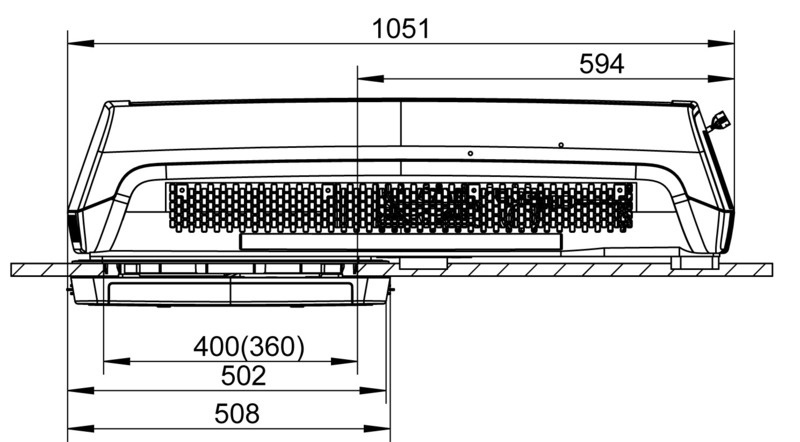

| Roof unit dimensions | 1051 x 698 x 250 mm |
| Air distributor dimensions | 503 x 482 x 45 mm (sold separately) |
| Roof opening | 360 x 360 to 400 x 400 mm |
| Roof thickness | 25-70 mm, 75-100 mm with additional installation kit (manufacturer part no. 29.0280.03.0065) |
| Max. operating angle | 10° in all directions |
| Weight | 32 kg roof unit, 3.1 kg air distributor |
| Protection class | IPX4 |
| Interfaces | CI-Bus, RV-C, Bluetooth, infrared |
Questions and answers
Is the air distributor included?
No, the Breezonic Performance / Performance Plus air distributor is ordered separately. It has a touch panel and dimmable LED lighting in cold or warm white.
What roof opening is needed?
360 x 360 to 400 x 400 mm, roof thickness 25-70 mm (75-100 mm with the additional installation kit).
How does it compare with the Truma Aventa comfort 2nd generation?
The Breezonic Performance HP has similar cooling power (2500 W) and more heating power (2400 W), but it is heavier. The Aventa comfort weighs 28.7 kg with its air distributor.
Manufacturer
Eberspächer Climate Control Systems International GmbH, Eberspächerstraße 24, 73730 Esslingen, Germany.
