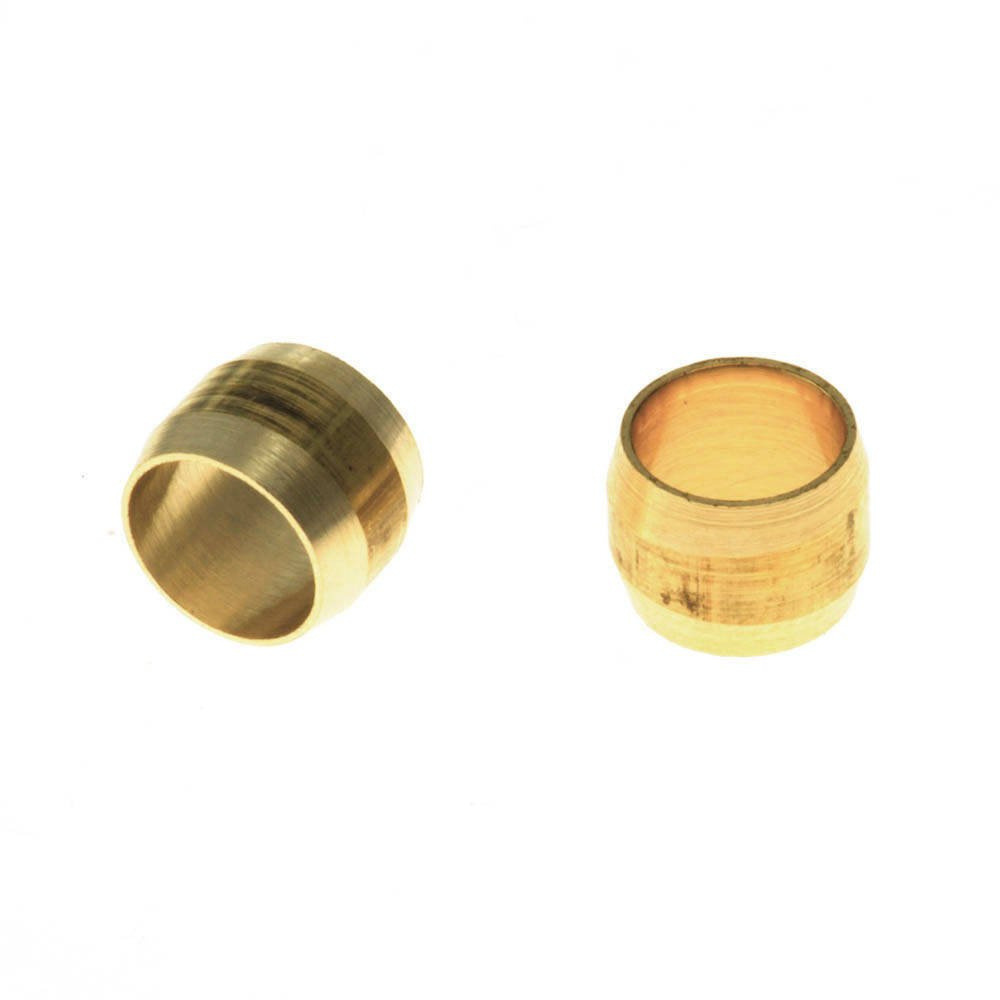

Ø8 mm low olive GB493 N - brass compression ring for RVS 8 screw fittings and English-type quick-shut valves
- Brass Ø8 mm olive in the low version (N) for all RVS 8 screw fittings in a gas system. It also fits English-type quick-shut valves. When the nut is tightened, it clamps onto the 8 mm pipe and seals the joint. Price per piece.
The Ø8 mm olive GB493 N is a brass compression ring in the low version (N = low). It fits all RVS 8 screw fittings on 8 mm gas pipe - valves, straight connectors, elbows, tees and reducers - and also English-type quick-shut valves. It goes onto the pipe under the fitting nut. When the nut is tightened, the olive clamps onto the pipe and into the fitting seat, making the joint gas-tight.
What it is for
- all RVS 8 screw fittings in motorhome and caravan gas systems
- also fits English-type quick-shut valves
- gas pipe with an outside diameter of 8 mm
- replacing a crushed or damaged olive and modifying the installation
- material: brass
- price per piece
Low version GB493 N vs standard GB493
- GB493 N is the low version (N = low)
- the low version fits English-type quick-shut valves and all RVS 8 fittings
- GB493 is the standard version of this Ø8 mm olive
Fitting
- cut the pipe square and remove burrs
- insert a reinforcing sleeve into soft copper pipe
- slide the nut onto the pipe, then the olive
- push the pipe fully into the fitting seat
- tighten the nut or compression screw - the olive clamps onto the pipe
- the olive is single-use; once clamped it cannot be moved to another pipe
- check the joint for leaks with leak detector spray or a leak tester
Related products
- Ø8 mm olive GB493, standard version
- Olive compression screw d-8 M12x1, brass
- GOK straight compression fitting RVS 8 x RVS 8, type G, series L
- GOK reinforcing sleeve AD 8 x 1 for 8 mm copper pipe
- GOK leak detector spray 400 ml
Technical data
| Parameter | Value |
|---|---|
| Product code | GB493 N |
| Type | olive (compression ring) |
| Version | low (N) |
| Pipe diameter | 8 mm |
| Material | brass |
| Use | all RVS 8 screw fittings in gas systems |
| Also fits | English-type quick-shut valves |
| Tightened by | fitting nut or olive compression screw d-8 M12x1 |
| Use type | single-use |
| Standard version | GB493 |
| Sold as | 1 pc |
Questions and answers
Does the olive fit only shut-off valves?
No. It fits all RVS 8 screw fittings on 8 mm pipe, including straight connectors, elbows, tees and reducers.
What does the N in GB493 N mean?
N stands for the low version. This olive fits English-type quick-shut valves as well as all RVS 8 fittings.
How is it different from the GB493 olive?
GB493 is the standard version, while GB493 N is the low version that also fits English-type quick-shut valves.
Can I reuse the olive?
No. Once tightened, it deforms onto the pipe. Use a new olive for every new joint.
Do I need a reinforcing sleeve?
Yes, with soft copper pipe. The AD 8 x 1 sleeve keeps the pipe from collapsing when the nut is tightened.
Does the joint need extra sealant?
No. The olive clamped in the fitting seat seals the joint. Check for leaks with spray or a leak tester after fitting.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warszawa, Poland.
